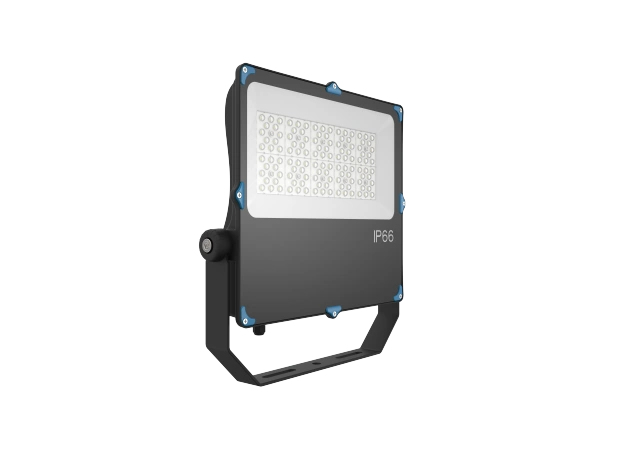

GINLITE LED Flood Light Series GL-FDL-S3B-100W

Name: GINLITE LED Flood Light Series GL-FDL-S3B-100W
Brand: Powershinetech's SHOP
SKU: 12
Price: 71 USD
Availability: InStock

GINLITE LED Flood Lamp Series for lighting in the field of Advertising Board, Road, Municipal Square, Bridge,Tunnel, Stadium and Construction Site, etc.

0.0 (0 Reviews)

$71.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Description

Technical Parameters

Data Sheet of LED Flood Light Series
No.	Model No.	Specifications	Product Demenision	Inner Box
1	FDL-S3B-10W	1)Light efficiency 120LM/W, 2)Color Temp.:6000k(Optional); 3)Ra ≥ 80; 4)LED:Sanan PCT3030 (6 series 2 parallel / 12 lights) 5)Dongling Power supply, AC100-240V certified; 6)Lens angle 30 °, 60 °, 90 °, 120 °optional, polarizing angle lens optional; 7)The main body of the shell is black (toughened glass fixed plate); 8)Packing mode: Pearl cotton+ inner box+ outer box; 9)IP66 protection grade;	182×122×47mm	190×180×55mm
2	FDL-S3B-20W	1)Light efficiency 120LM/W, 2)Color Temp.:6000k(Optional); 3)Ra ≥ 80; 4)LED: Sanan PCT3030 (6 series 4 parallel / 24 lights) 5)Dongling Power supply, AC100-240V certified; 6)Lens angle 30 °, 60 °, 90 °, 120 °optional, polarizing angle lens optional; 7)The main body of the shell is black (toughened glass fixed plate); 8)Packing mode: Pearl cotton+ inner box+ outer box; 9)IP66 protection grade;	24216951mm	248×175×60mm
3	FDL-S3B-30W	1)Light efficiency 120LM/W, 2)Color Temp.:6000k(Optional); 3)Ra ≥ 80; 4)LED: Sanan PCT3030 (6 series 6 parallel / 36 lights) 5)Dongling Power supply, AC100-240V certified; 6)Lens angle 30 °, 60 °, 90 °, 120 °optional, polarizing angle lens optional; 7)The main body of the shell is black (toughened glass fixed plate); 8)Packing mode: Pearl cotton+ inner box+ outer box; 9)IP66 protection grade;	24216951mm	248×175×60mm
4	FDL-S3B-50W	1)Light efficiency 120LM/W, 2)Color Temp.:6000k(Optional); 3)Ra ≥ 80; 4)LED: Sanan PCT3030 (6 series 10 parallel / 60 lights) 5)Dongling Power supply, AC100-240V certified; 6)Lens angle 30 °, 60 °, 90 °, 120 °optional, polarizing angle lens optional; 7)The main body of the shell is black (toughened glass fixed plate); 8)Packing mode: Pearl cotton+ inner box+ outer box; 9)IP66 protection grade;	28222052mm	29022660mm
5	FDL-S3B-100W	1)Light efficiency 120LM/W, 2)Color Temp.:6000k(Optional); 3)Ra ≥ 80; 4)LED: Lumileds EMC3030 (6 series 20 parallel / 120 lights) 5)Meanwell Power supply, AC100-240V certified; 6)Lens angle 30 °, 60 °, 90 °, 120 °optional, polarizing angle lens optional; 7)The main body of the shell is black (toughened glass fixed plate); 8)Packing mode: Pearl cotton+ inner box+ outer box; 9)IP66 protection grade;	33726952mm	34528660mm
6	FDL-S3B-150W	1)Light efficiency 120LM/W, 2)Color Temp.:6000k(Optional); 3)Ra ≥ 80; 4)LED: Lumileds EMC3030 (6 series 30 parallel / 180 lights) 5)Meanwell Power supply, AC100-240V certified; 6)Lens angle 30 °, 60 °, 90 °, 120 °optional, polarizing angle lens optional; 7)The main body of the shell is black (toughened glass fixed plate); 8)Packing mode: Pearl cotton+ inner box+ outer box; 9)IP66 protection grade;	33726952mm	34528660mm
7	FDL-S3B-200W	1)Light efficiency 120LM/W, 2)Color Temp.:6000k(Optional); 3)Ra ≥ 80; 4)LED: Lumileds EMC3030 (6 series 40 parallel / 240 lights) 5)Meanwell Power supply, AC100-240V certified; 6)Lens angle 30 °, 60 °, 90 °, 120 °optional, polarizing angle lens optional; 7)The main body of the shell is black (toughened glass fixed plate); 8)Packing mode: Pearl cotton+ inner box+ outer box; 9)IP66 protection grade;	33726952mm	34528660mm
8	FDL-S3B-240W	1)Light efficiency 120LM/W, 2)Color Temp.:6000k(Optional); 3)Ra ≥ 80; 4)LED: Lumileds EMC3030 (6 series 40 parallel / 240 lights) 5)Meanwell Power supply, AC100-240V certified; 6)Lens angle 30 °, 60 °, 90 °, 120 °optional, polarizing angle lens optional; 7)The main body of the shell is black (toughened glass fixed plate); 8)Packing mode: Pearl cotton+ inner box+ outer box; 9)IP66 protection grade;	33726952mm	34528660mm
9	FDL-S3B-320W	1)Light efficiency 120LM/W, 2)Color Temp.:6000k(Optional); 3)Ra ≥ 80; 4)LED: Lumileds EMC3030 (6 series 32 parallel / 384 lights) 5)Meanwell Power supply, AC100-240V certified; 6)Lens angle 30 °, 60 °, 90 °, 120 °optional, polarizing angle lens optional; 7)The main body of the shell is black (toughened glass fixed plate); 8)Packing mode: Pearl cotton+ inner box+ outer box; 9)IP66 protection grade;	33726952mm	34528660mm
